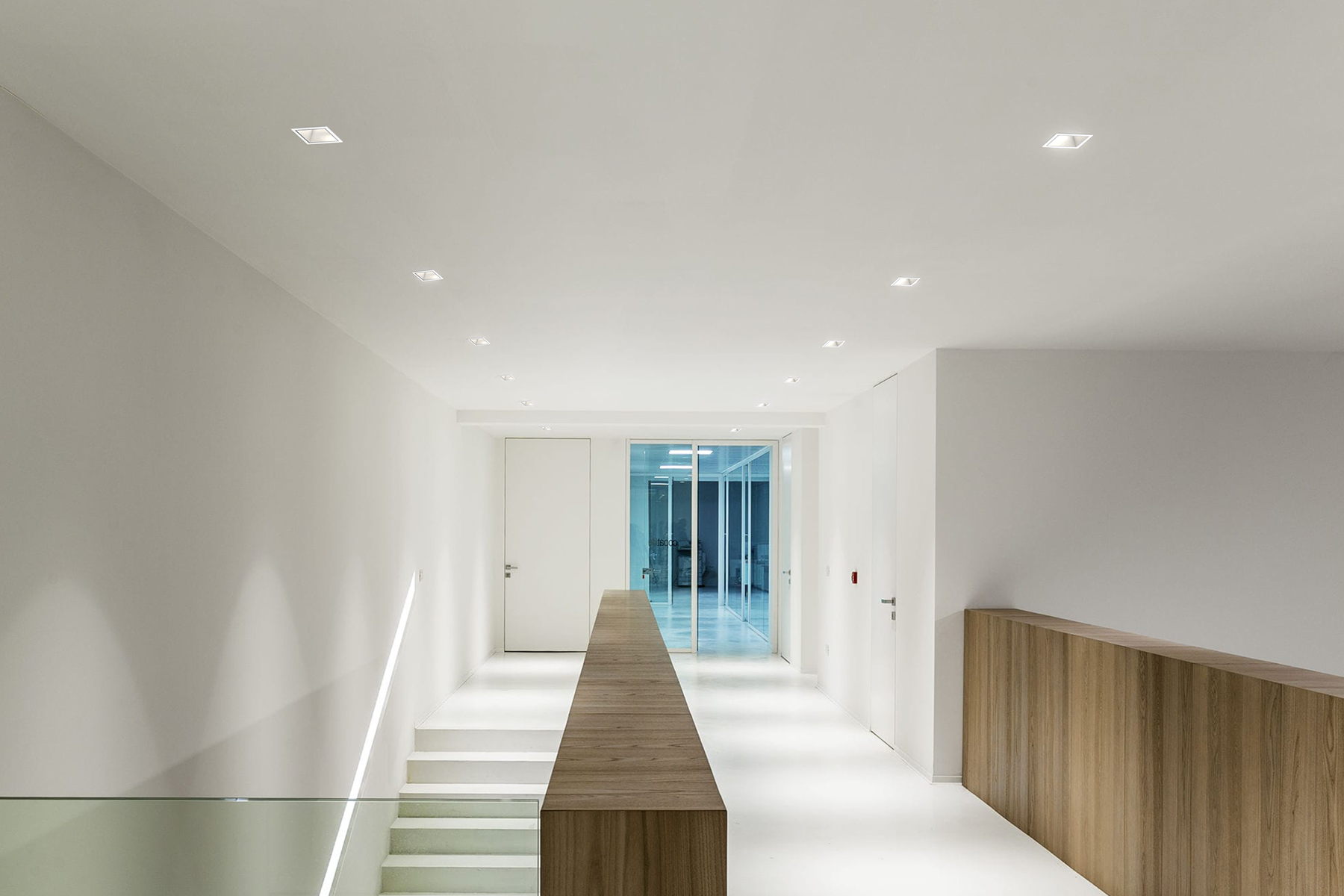

Commercial Downlight - Dome Series

-Available in round and square shapes with cutout sizes of 75, 100, 150, and 200mm.
-Achieves up to 120 lumens per watt and carries an IP54 rating.
-Deep recessed design ensures exceptional eye comfort with a UGR value below 19.
-Modular design allows individual ordering of heatsinks, optical components, and secondary reflectors. Minimizes inventory pressure.
-Interchangeable reflectors, including matte, white, and black options.

GENERAL

  • Indoor
  • Recessed
  • IP54
  • Fixed
  • Round
  • Square
  • Trimmed
  • Modular Design

LED

  • COB LED module
  • 2700K, 3000K, 4000K
  • CRI>80, CRI>90
  • Binning < 3-Step MacAdam

ESTIMATED LED LIFETIME

  • L80/50.000h

OPTICAL

  • Direct illumination
  • Beam angle 25°,50°

PHYSICAL

  • Die-casting Aluminum
  • Powder Coated
  • Secondary reflector Aluminum

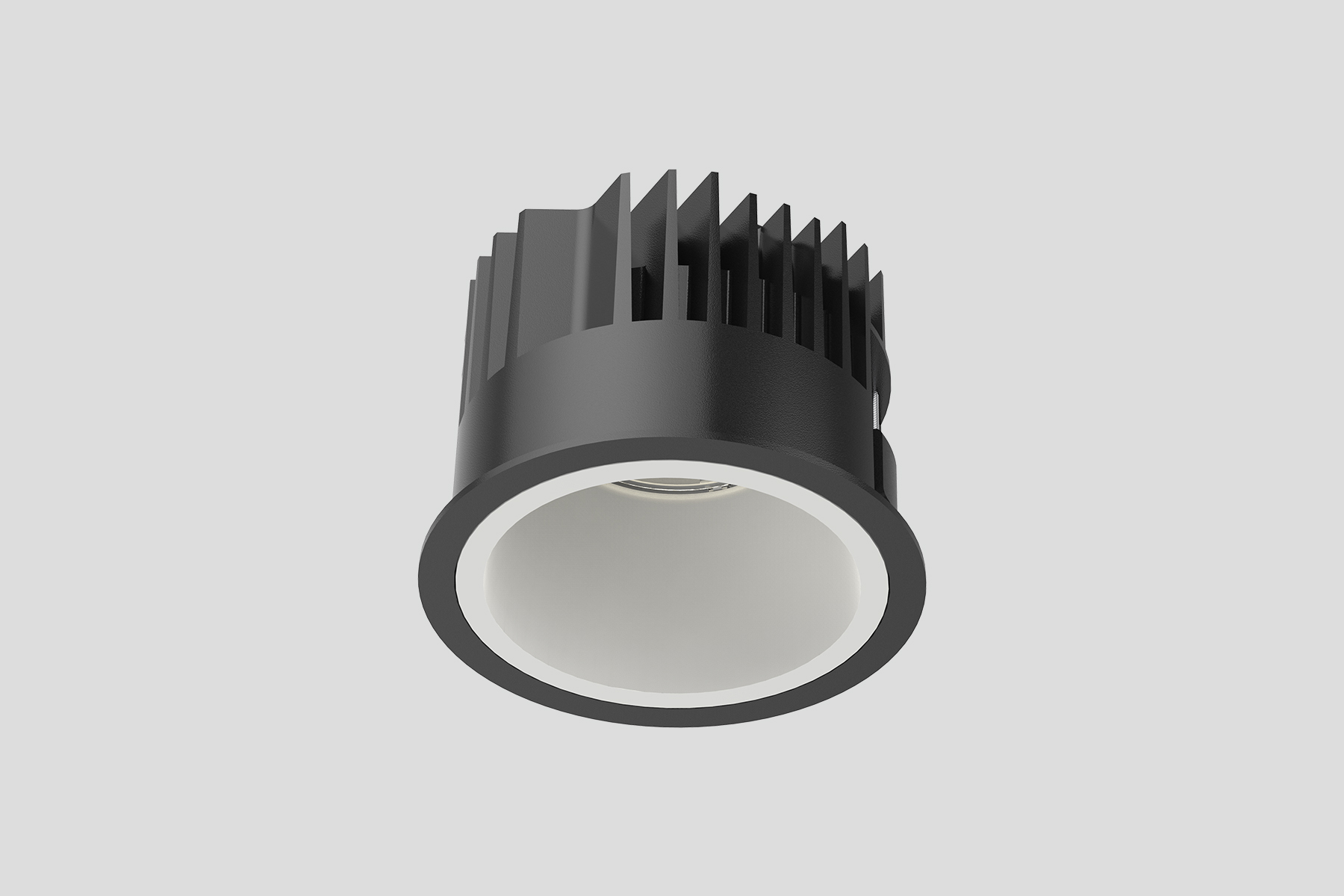

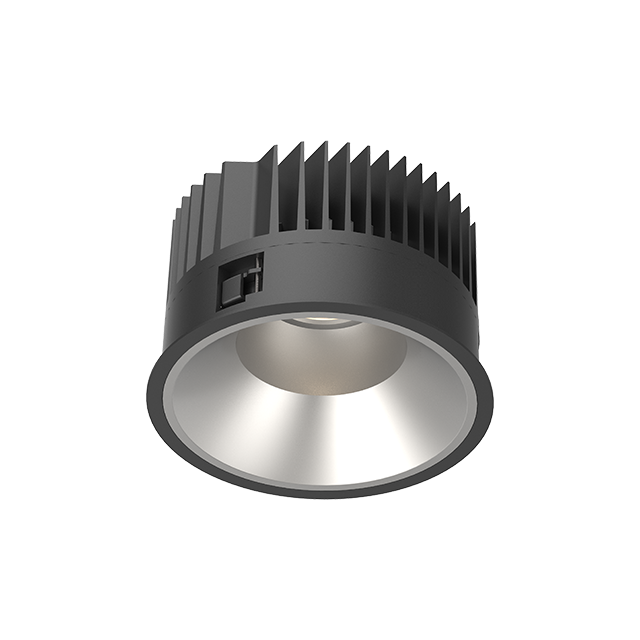

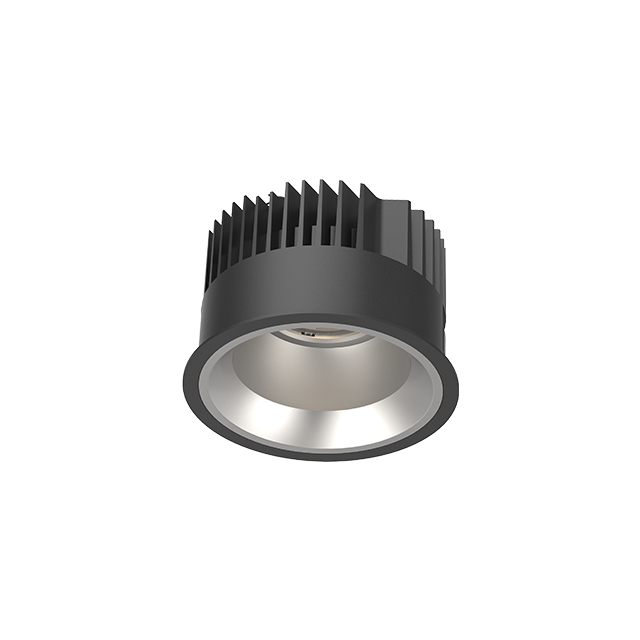

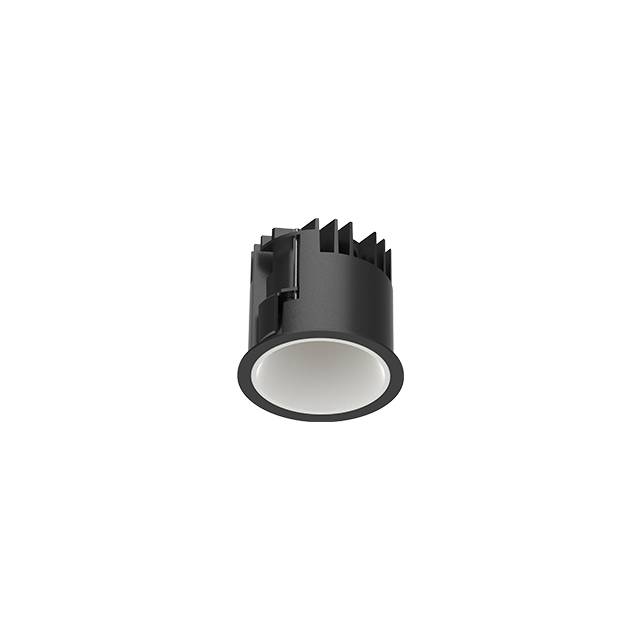

Modular and compact LED downlight- DOME Series- Round

Modular and compact LED downlight- DOME Series- Round

- Integrated mechanicals of heatsink and mounting ring to reduce components.
-Deep recessed design achieves super eye comfort.
-Attractive appearance with efficiency and functionality.
-Passive management ensures durability.
-Optimal lens technologies with medium and flood beam angles guarantee light quality.
-Interchangeable reflectors of matt, white and black colors provide maximum design freedom.

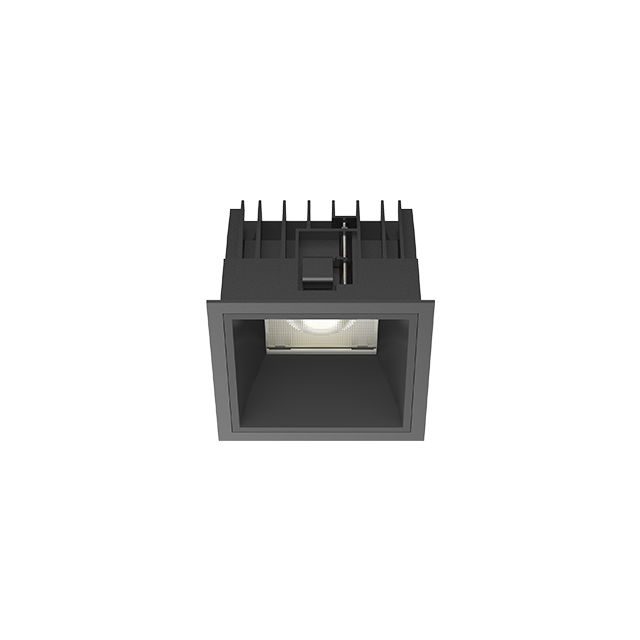

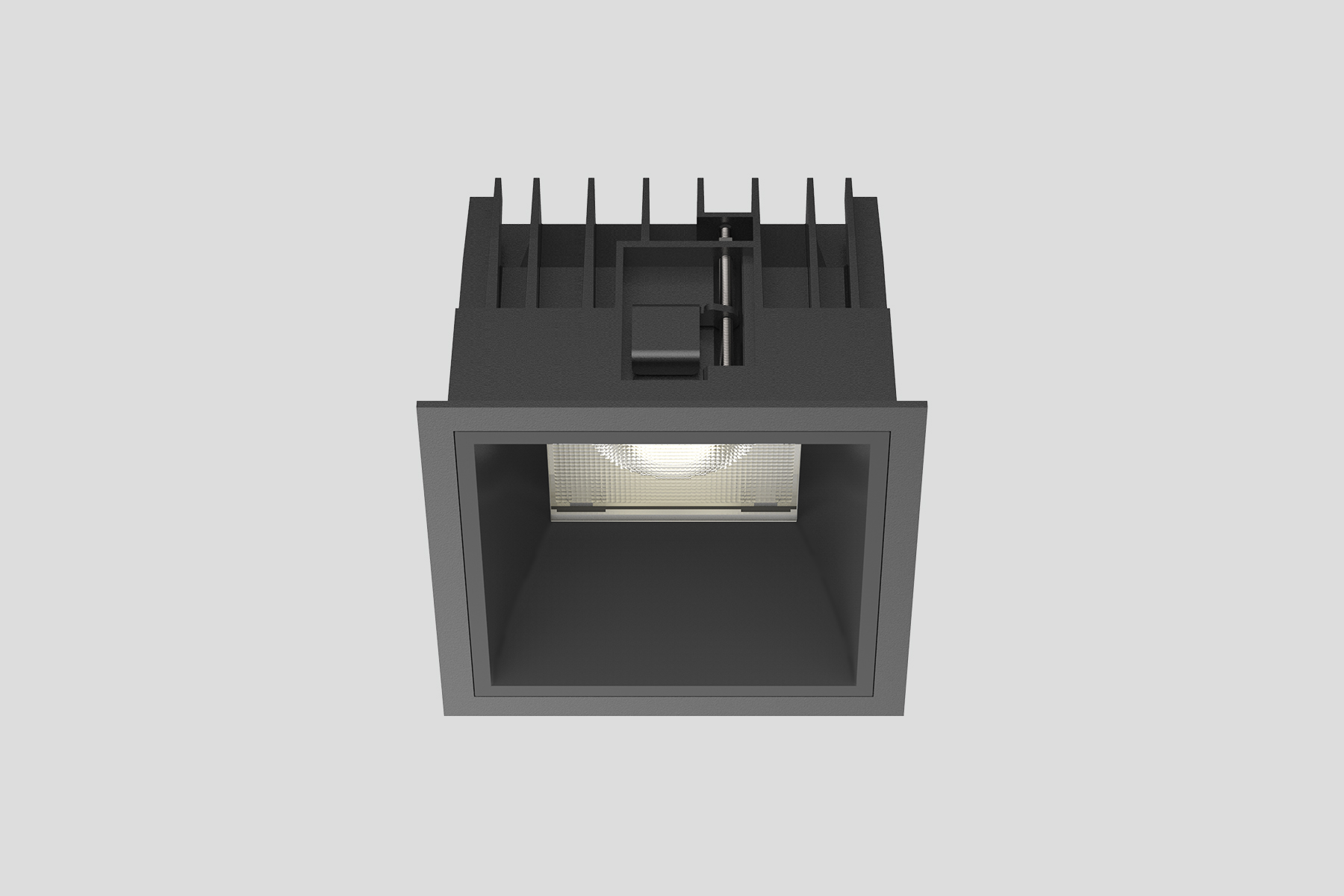

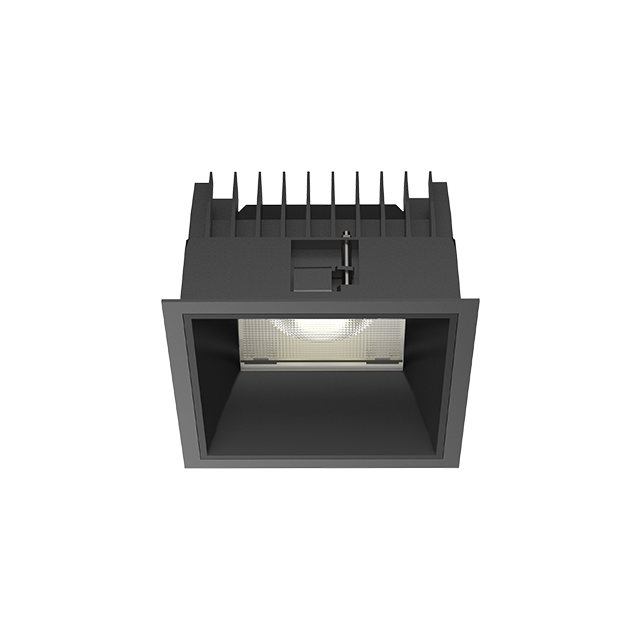

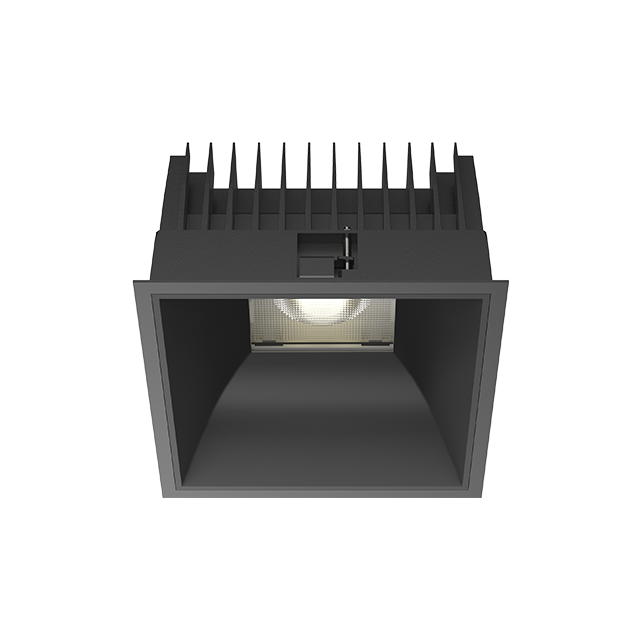

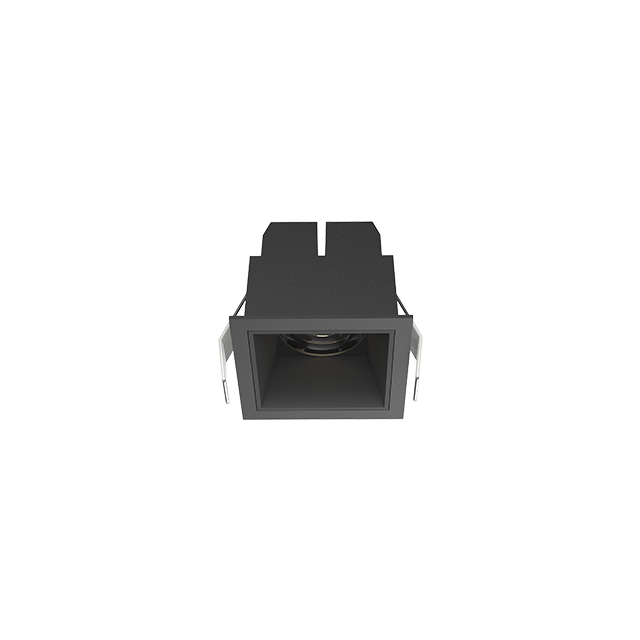

Modular and compact LED downlight- DOME Series- Square

Modular and compact LED downlight- DOME Series- Square

- Integrated mechanicals of heatsink and mounting ring to reduce components.
-Deep recessed design achieves super eye comfort.
-Attractive appearance with efficiency and functionality.
-Passive management ensures durability.
-Optimal lens technologies with medium and flood beam angles guarantee light quality.
-Interchangeable reflectors of matt, white and black colors provide maximum design freedom.
